OmniMPC-242
Medical Panel PC · 24" Medical Panel PC 14th Gen Platform
OmniMPC-242 — Medical Panel PC by moximTECH. Industrial-grade design with global certifications. Explore specs, configuration, and OEM/ODM options.
- Intel® 14th Gen Core™ Ultra 5 125U
- 23.8" FHD VA · 3000:1 · P-Cap Touch
- DDR5 · Fanless 43mm · IP65 · IEC 60601-1
Key Features
IP65 Protection · Medical Certified
Front-panel IP65 water and dust resistance, IEC 60601-1 compliant, with antimicrobial housing design
Fanless 43mm Slim
Passive fanless cooling, only 43mm thick, zero noise — ideal for continuous 24/7 medical operation
Telemedicine Ready
Integrated 5MP camera, dual microphone array, and speakers — complete video consultation in one device
Touch Lock · Backup Battery
Touch lock prevents accidental input during cleaning; optional removable backup battery ensures uninterrupted service
24" Full HD Touch · 3000:1 Contrast
23.8" 1920×1080 VA panel, 10-point projected capacitive multi-touch, 3000:1 contrast ratio
Intel® 14th Gen Performance
Meteor Lake Ultra 5 125U with DDR5 5600MT/s high-speed memory for demanding medical imaging workloads
Rich I/O · USB-C
1× USB-C, 4× USB 3.2, 3× USB 2.0, 2× GbE LAN, HDMI, COM, Audio Jack, Wi-Fi 6 / Bluetooth 5.2
OEM / ODM Customization
Full customization of appearance, functions, and I/O connectors — complete design-to-production solutions
Specifications
Core Components
| Platform | Intel® Meteor Lake-U (14th Gen) |
|---|---|
| Model | Core™ Ultra 5 125U |
| Integrated Graphics | Intel® Arc™ Graphics |
| Security | fTPM (Default) | dTPM (Optional) |
| Memory Type | DDR5 5600MT/s SO-DIMM (Dual Channel) |
|---|---|
| Capacity Options | 8GB / 16GB / 32GB / 48GB |
| Primary (M.2) | 1× M.2 M-Key 2280, NVMe PCIex4 Gen4 |
| Secondary (SATA) | 1× 2.5" SATA Gen3 Drive Bay: 128GB – 1TB |
| Expansion Slots | 1× M.2 M-Key 2280 PCIex4 Gen4 | 1× M.2 M-Key 2230 PCIe (Wi-Fi) | 1× Mini PCIe + USB 2.0 |
Display
| Size | 23.8" (Full HD) |
|---|---|
| Resolution | 1920 × 1080 px |
| Panel Type | VA (Wide Viewing Angle) |
| Brightness | 250 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° (H) × 178° (V) |
| Colors | 16.7M |
| Touch Technology | Projected Capacitive (P-Cap) G/G Multi-Touch |
|---|---|
| Touch Points | 10-Point Simultaneous Touch |
| Touch Lock | Supported (prevents accidental input during cleaning) |
| Glove Operation | Supports Medical Glove Touch |
I/O
| USB-C | × 1 |
|---|---|
| USB 3.2 5Gbps | × 4 (Type-A) |
| USB 2.0 | × 3 (Type-A) |
| LAN | 2× RJ45 GbE LAN |
| Display Output | HDMI × 1 |
| Serial Port | 1× COM |
|---|---|
| Audio Out | 1× 3.5mm Audio Jack For Speaker Box (Option) |
| Power Connector | DC Jack 19V |
| Control Keys | Vol ▲▼ · Brightness ▲▼ · Touch Lock |

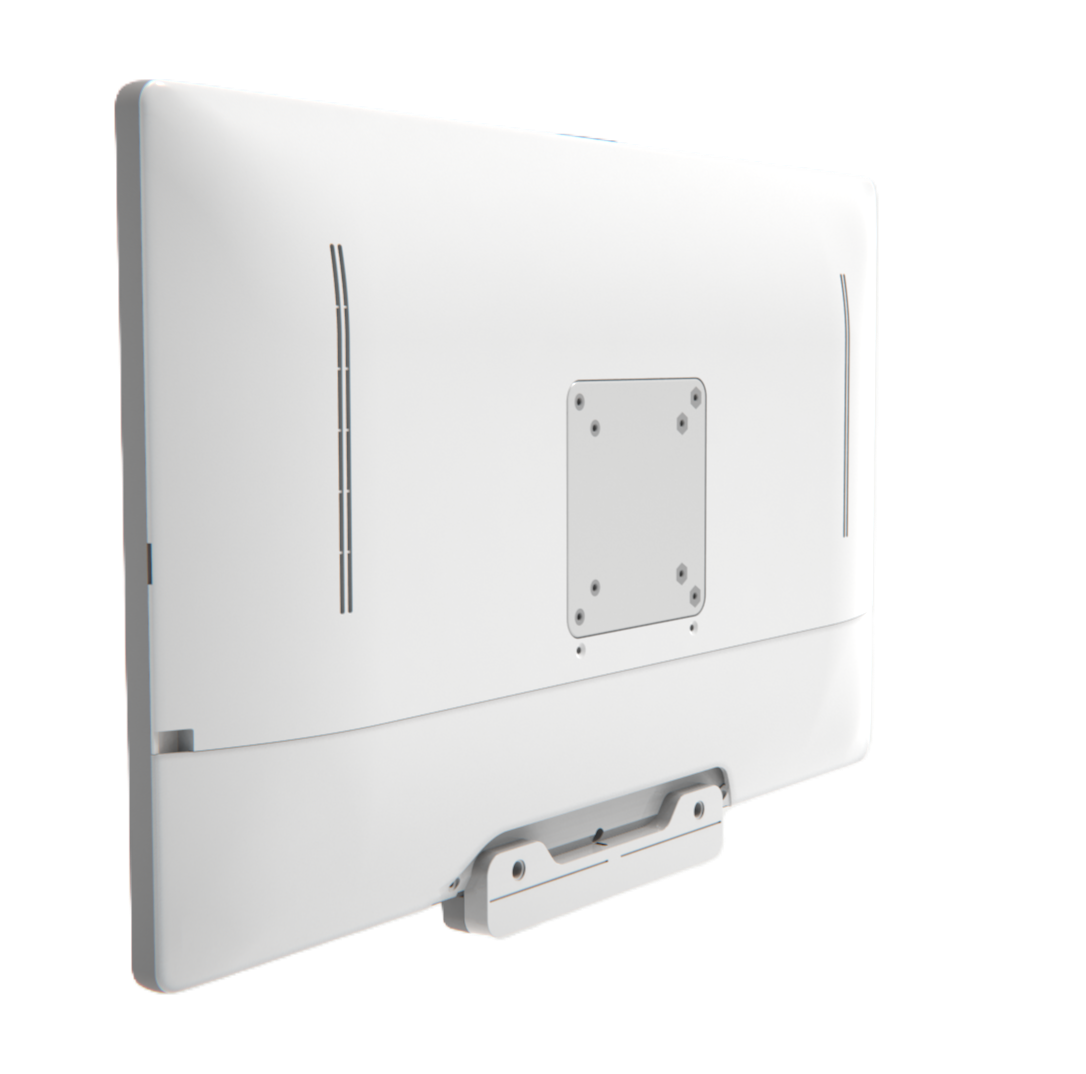

| VESA Mounting | 75×75mm / 100×100mm |
Wireless & Multimedia
| Wi-Fi | 802.11 a/b/g/n/ac |
|---|---|
| Bluetooth | 5.2 |
| Camera | 5MP Front Camera + Privacy Shutter |
|---|---|
| Microphone | 2× Built-in Microphones |
| Speakers | 2× 3W Built-in |
| RFID | HF 13.56MHz or LF 125KHz |
| Telemedicine | Video Consultation Ready (HIPAA Compatible) |
Mechanical & Environment
| Dimensions | 581 × 351 × 43mm (W × H × D) |
|---|---|
| Weight | 7.8 KG (without battery) |
| Chassis | Medical White Die-Cast Aluminum |
| Chassis Color | White (Antimicrobial Housing) |
| Cooling | Fanless Passive Cooling |
| IP Rating | IP65 (Front Panel) |
| AC Input | 100–240V, 50/60Hz |
|---|---|
| DC Input | 19V DC (4.74A) |
| Backup Battery | 10.8V / 9220mAh, Removable / Hot-Swap |
| Operating System | Windows 11 64-bit |
| Operating Temp. | 0°C – 35°C (32°F – 95°F) |
| Storage Temp. | -20°C – 60°C (-4°F – 140°F) |
| Humidity | 20% – 80% (Non-Condensing) |
Certifications & OEM
| Medical Electrical | IEC 60601-1 |
|---|---|
| Safety Standard | IEC 62368-1 |
| EMC | FCC Class B |
| Security | fTPM (Default) | dTPM (Optional) |
| Antimicrobial | Antimicrobial Housing |
| Customization | OEM / ODM |
