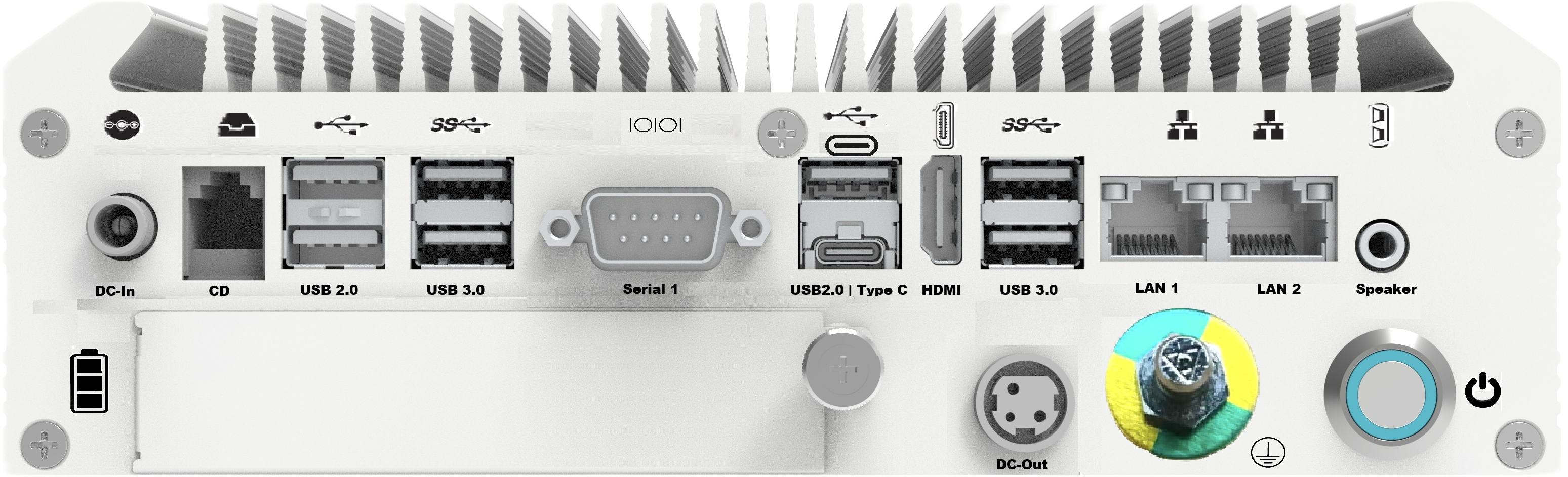

Rear I/O
Rear I/O

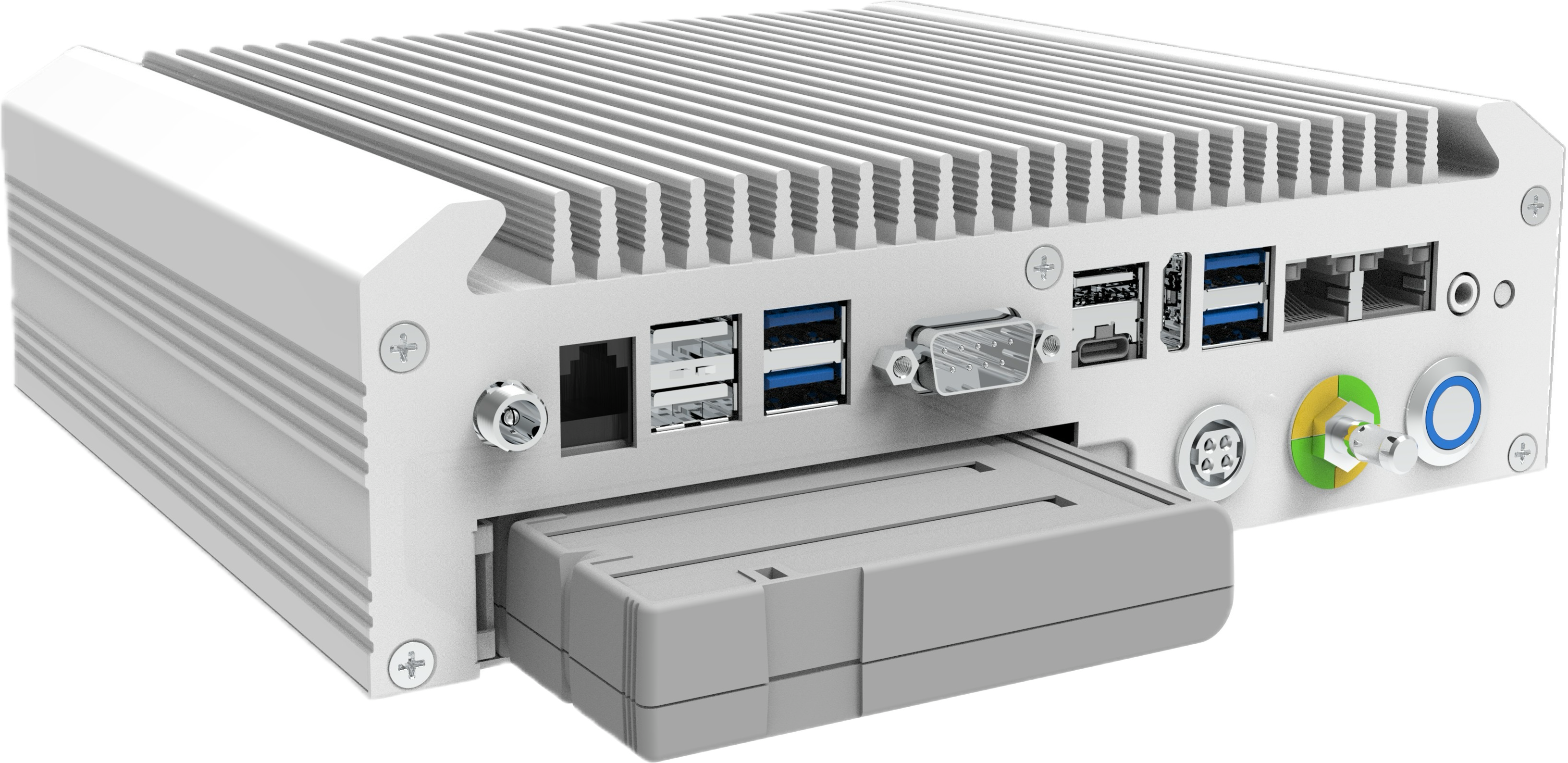

Remove Battery
Overview

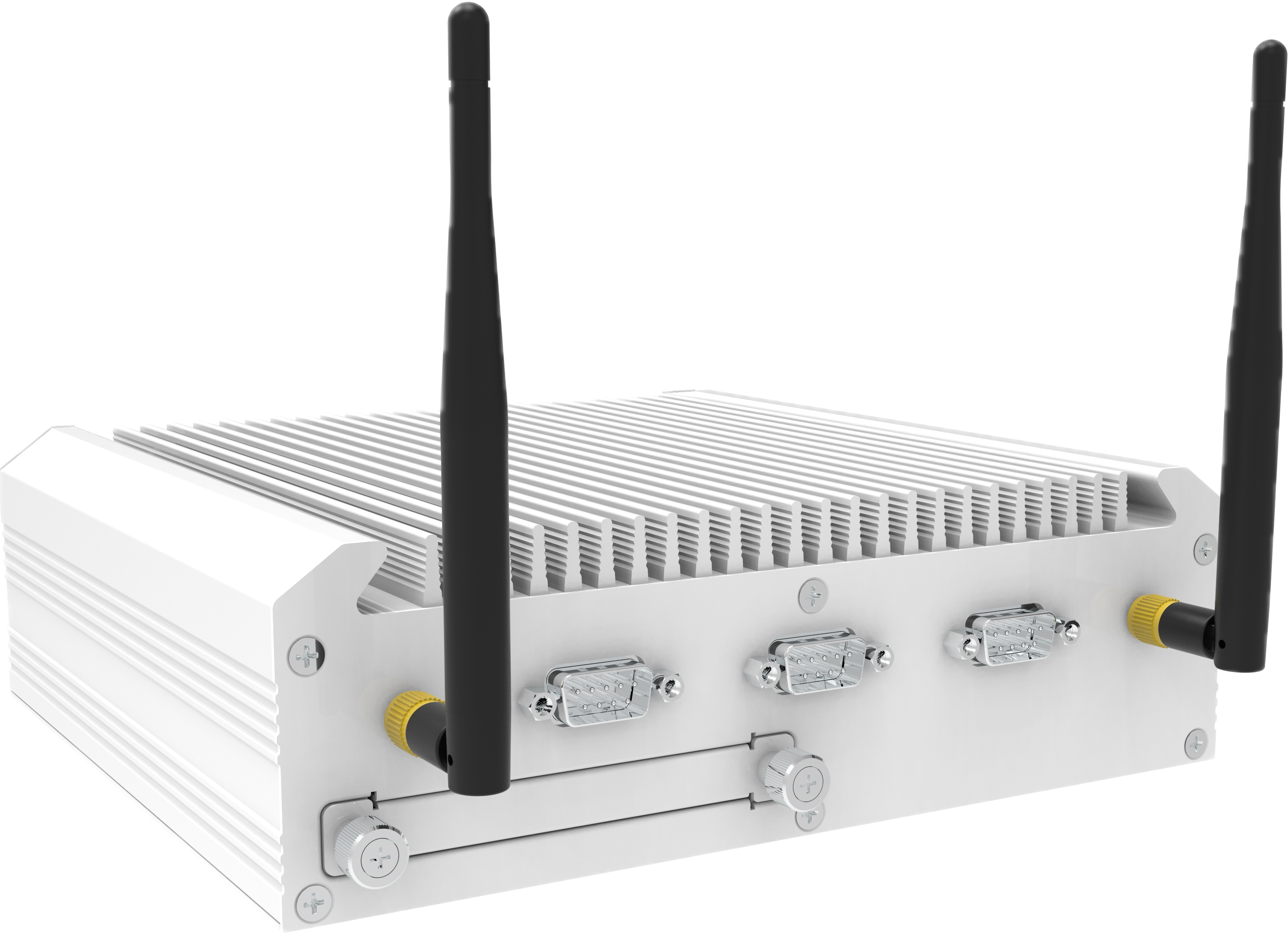

Front I/O
EBOX Series · Box PC

EBOX-601

Box PC · 14th Gen Platform

EBOX-601 — Box PC by moximTECH. Industrial-grade design with global certifications. Explore specs, configuration, and OEM/ODM options.

  • Intel® Core™ Ultra 5 125U · 14th Gen
  • DDR5 5600MT/s · Up to 48GB
  • Fanless · IEC 60601-1 · Hot-Swap Battery

Key Features

  • IEC 60601-1

    IEC 60601-1 medical electrical equipment compliant

  • Fanless Passive Cooling

    Silent fanless passive cooling for 24/7 continuous medical operation, zero noise, zero vibration

  • Headless · External Display Ready

    HDMI output supports any external medical-grade display — ideal for flexible or space-constrained deployments

  • Wide Voltage AC/DC Input

    100–240V AC, 50/60Hz, DC Input 12-35V Wide Range, Hot-Swap Battery 10.8V / 9220mAh (Optional)

  • Intel® 14th Gen Platform

    Intel® Meteor Lake Ultra 5 125U with DDR5 5600MT/s high-speed memory — delivers full medical-grade computing in a compact form factor

  • DDR5 High-Speed Memory

    DDR5 5600MT/s SO-DIMM dual-channel, up to 48GB — handles demanding medical imaging workloads

  • Rich I/O · USB-C

    1× USB-C, 4× USB 3.2, 3× USB 2.0, 2× GbE LAN, HDMI, COM

  • OEM / ODM Customization

    Full customization of I/O, chassis, and branding — complete design-to-production solutions

Specifications

Core Components

Processor
PlatformIntel® Meteor Lake-U (14th Gen)
ModelCore™ Ultra 5 125U
Integrated GraphicsIntel® Arc™ Graphics
SecurityfTPM 2.0 (Default) | dTPM (Optional)
Operating SystemWindows 11 64-bit
Memory & Storage
Memory TypeDDR5 5600MT/s SO-DIMM (Dual Channel)
Capacity Options8GB / 16GB / 32GB / 48GB
Primary (M.2)1× M.2 M-Key 2280, NVMe PCIex4 Gen4
Secondary (SATA)1× 2.5" SATA Gen3 Drive Bay: 128GB – 1TB
Expansion Slots1× M.2 M-Key 2280 PCIex4 Gen4 | 1× M.2 M-Key 2230 PCIe (Wi-Fi) | 1× Mini PCIe + USB 2.0

I/O

USB & Network
USB-C× 1
USB 3.2 5Gbps× 4 (Type-A)
USB 2.0× 3 (Type-A)
LAN2× RJ45 GbE LAN
Display OutputHDMI × 1 | USB-C × 1
Serial & Other
Serial Port1× COM (RS-232)
Audio Out1× 3.5mm Audio Jack (4 Pin)
Power ConnectorDC Jack 12–35V Wide Range
Wireless
Wi-Fi802.11 a/b/g/n/ac (Optional)
Bluetooth5.2 (Optional)

Mechanical & Environment

Mechanical
ChassisMedical White Die-Cast Aluminum
Chassis ColorWhite (Antimicrobial Housing)
CoolingFanless Passive Cooling
IP RatingIP65
Power & Environment
AC Input100–240V AC, 50/60Hz
DC Input19V DC (4.74A)
Backup Battery10.8V / 9220mAh Hot-Swap (Optional)
Operating Temp.0°C – 35°C (32°F – 95°F)
Storage Temp.-20°C – 60°C (-4°F – 140°F)
Humidity20% – 80% (Non-Condensing)

Certifications & OEM

Safety & Certifications
Medical ElectricalIEC 60601-1
Safety StandardIEC 62368-1
EMCFCC Class B
CECE Marking
RoHSRoHS Compliant
SecurityfTPM 2.0 (Default) | dTPM (Optional)
